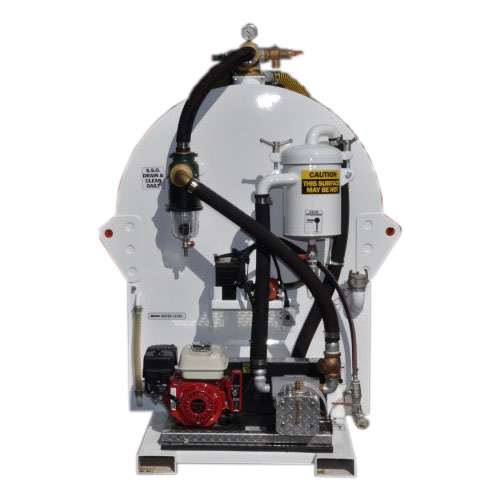

EVAC 1600

Portable Vacuum Tank Unit

Versatile, portable medium capacity vacuum unit that is priced for anyone to afford not just for companies working in the liquid waste industry.

Key Features

  • Petrol or Diesel 70 CFM vacuum pump
  • Suction & water hoses fitted
  • Dual shut off system
  • Tie down points
  • For portable toilet cleaning, waste oil disposal and liquid spills


The EVAC 1600 (sixteen hundred) is available in the petrol and also a 6 HP Hatz diesel powered 70 CFM vacuum pump package. The shut off system consists of two inline shut off devices with rubber balls. The primary shut off is located on top of the tank, this being the first line of defence against product contamination, the secondary shut off is located on the front face of the tank, this shuts off if product bypasses the primary when it is not functioning correctly. Fitted on the back port of the primary shut off is a vacuum relief valve set at negative 65 kPa and a pressure relief valve. On the top port of primary shut off is a vacuum gauge.

Each unit comes with a 12 V electric water pump, connected to the 600L water tank to provide clean water for washing out purposes or filling portable toilet tanks. On the rear of the unit is a hook fitted with 15m of garden hose, with a nozzle that can be turned on or off.

Ten metres of two inch suction hose is supplied and loops around the rear of the unit with a three inch inlet port to the tank, fitted with a tee to allow the other side to be used as a blockage removal port. The tank can be emptied via a three inch ball valve at the rear lowest point of the tank.

The unit can be washed out via an access point on the side of the tank, this access is 250mm in diameter with a quick opening lid consisting of two wingnut and eyebolts.


  • Tank Construction: Stainless Steel
  • Waste/Water Tank Sizes: 1600L/600L
  • Vacuum System: Vane
  • Self Contained: Yes
  • Pump: Diesel or Petrol Driven, 70 cfm
  • Tank Mount: Skid
  • Water Tanks: Yes
